ACL High Performance Main Bearings for 1986-2005 Acura D16A1 & Honda H22A4/F23A0
Part # 5M1957H-.025 SKU 12995
Write a Review
ACL
ACL High Performance Main Bearings for 1986-2005 Acura D16A1 & Honda H22A4/F23A0
Highlights
- Grade type
- Performance
- Max overall length
- 0.787" (20.00mm)
- Max std shaft size
- 2.1654" (55.000mm)
- Max std tunnel size
- 2.3236" (59.020mm)
- Max wall
- 0.079
- Max wall at crown
- 0.0790" (2.007mm)
- Min std shaft size
- 2.1646" (54.980mm)
- Min std tunnel size
- 2.3228" (59.000mm)
- Oil clearance
- Standard
- Outside diameter
- 2.3228
- Shaft diameter
- 2.1646
- Size
- 0.025
- Type
- Main Bearings Set
- Width
- 0.787
- Material
- High-Performance Alloy
- Interchange number
- 1986-2005 Acura/Honda/Isuzu applications listed, above; Acura D16A1, Honda H22A4, F23A0
- Compatibility
- Acura D16A1, Honda H22A4, F23A0 engines
- Application
- Engine rebuilds, performance upgrades
Description
ACL High Performance Main Bearings for 1986-2005 Acura D16A1 & Honda H22A4/F23A0
The ACL High Performance Main Bearings are precision-engineered components designed to enhance engine reliability and performance in a variety of Honda and Acura models. These bearings are specifically tailored for the D16A1 and H22A4/F23A0 engines, ensuring optimal fit and function. Built to withstand the rigors of high-performance driving, ACL bearings provide excellent lubrication, which helps to reduce friction and support overall engine health.
Utilizing advanced manufacturing techniques and high-quality materials, the ACL main bearings feature a robust design that fosters improved load capacity and enhanced durability. With a focus on reducing wear and tear, these bearings minimize the risk of engine failure, allowing for consistent power delivery and increased longevity. Whether you're operating in everyday conditions or participating in competitive motorsport applications, these bearings are essential for achieving peak engine performance.
FITMENT: Compatible with 1986-2005 Acura D16A1 and Honda H22A4/F23A0 engines, these main bearings are an ideal replacement for both OEM and aftermarket applications. They are designed to seamlessly integrate into your engine assembly, ensuring reliability and precision across the board.
Key Features & Benefits
- High-performance design tailored for Acura D16A1 and Honda H22A4/F23A0 engines.
- Enhanced load capacity for superior engine durability.
- Reduced friction through precision engineering, promoting optimal lubrication.
- Minimized wear and tear, allowing for extended engine lifespan.
- Seamless fit and compatibility with OEM specifications.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | ACL |
| Part number | 5M1957H-.025 |
| SKU | 12995 |
| Dimensions and weight | |
| Outside diameter | 2.3228 |
| Size | 0.025 |
| Width | 0.787 |
| Dimensions (W × H × D) | 3.00 × 6.00 × 1.00 in |
| Material and finish | |
| Finish | Unfinished |
| Material | High-Performance Alloy |
| Series and warranty | |
| Details | |
| Grade type | Performance |
| Max overall length | 0.787" (20.00mm) |
| Max std shaft size | 2.1654" (55.000mm) |
| Max std tunnel size | 2.3236" (59.020mm) |
| Max wall | 0.079 |
| Max wall at crown | 0.0790" (2.007mm) |
| Min std shaft size | 2.1646" (54.980mm) |
| Min std tunnel size | 2.3228" (59.000mm) |
| Oil clearance | Standard |
| Shaft diameter | 2.1646 |
| Type | Main Bearings Set |
| Interchange number | 1986-2005 Acura/Honda/Isuzu applications listed, above; Acura D16A1, Honda H22A4, F23A0 |
| Compatibility | Acura D16A1, Honda H22A4, F23A0 engines |
| Application | Engine rebuilds, performance upgrades |
Shipping and returns
Shipping. Free on every order, US only. Orders arrive in 2–4 days.
Returns. 30-day returns, except in extreme cases.
Support. Our team is available 24/7 for fitment mismatches or any other reason.
Warranty. Full manufacturer guarantee.
Not sure about this part? Ask us.
Fitment, install, what else you need for the job. A parts person answers, usually within one business day.
We answer by email. No account needed.
Questions and answers
No public questions on this part yet. Ask the first one.
Reviews
Write a reviewNo reviews on this part yet.
-
King Engine Bearings
For King Acura D16A1/97-01 Honda H22A4/98+ F23A Performance Main Bearing Set -
$96.99 -
ACL
ACL High Performance Rod Bearing for 19982006 K20A3/F23A/Acura & Honda Models
$83.99 -
ACL
ACL High Performance Oversized Rod Bearing Set for Acura/Honda K20A2/K24A Engine
$72.99 -
ACL

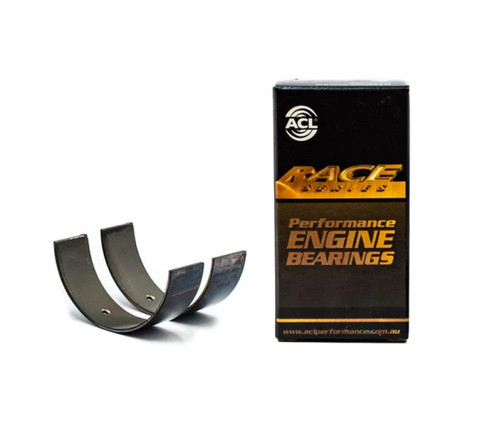

ACL Race Main Bearing Set .025 Oversize for Honda Acura K24Z1 5M1959H
