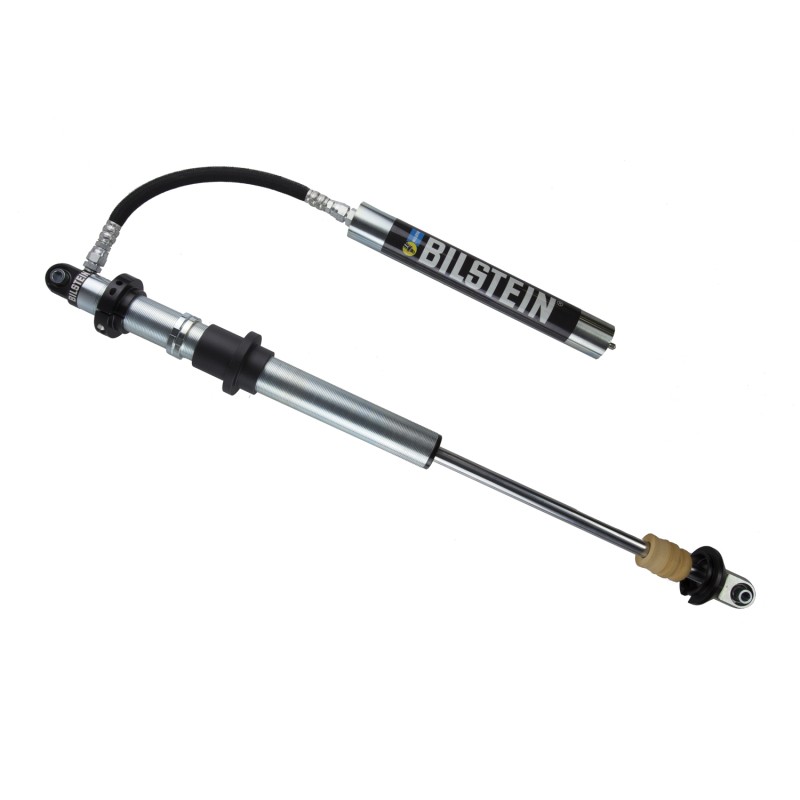

Bilstein 8125 Series 46mm Coilover Shock Absorber 23.539.5in w/ Reservoir
Part # 33-225586 SKU 4370973
Write a Review
BILSTEIN
Bilstein 8125 Series 46mm Coilover Shock Absorber 23.539.5in w/ Reservoir
Highlights
- Body design
- Threaded Body Screw Top (Coilover)
- Collapsed length (in)
- 24
- Extended length (in)
- 39.5
- Item length
- 23.5 in. (Collapsed) / 39.5 in. (Extended)
- Lower mount type
- Eye .5x1.5in
- Material
- Steel, Billet Aluminum
- Mount type
- Eye-to-Eye
- Mounting style
- Eye-to-Eye (0.5 in. x 1.5 in.)
- Position
- Front, Rear, Left, Right (Universal – Eye-to-Eye Mount)
- Prop 65 warning
- Warning applies
- Rebound @026m/s
- 2550
- Reservoir
- Yes
- Reservoir included
- Yes
- Segment
- Motorsports
- Shock absorber system
- Single Pipe (Monotube)
- Shock absorber type
- Gas
- Shock stroke
- 16.000 in.
- Spring seat included
- Yes
- Travel length
- 16 in.
- Type
- Suspension Shock Absorber
- Upper mount type
- Eye 0.500 in. x 1.500 in.
- Rebound @0.26m/s
- 2550
Description
Bilstein 8125 Series 46mm Coilover Shock Absorber 23.5–39.5in w/ Reservoir
The Bilstein 8125 Series Coilover Shock Absorber is engineered to provide exceptional performance and handling characteristics for automotive enthusiasts. Designed with a focus on durability and reliability, these shock absorbers are ideal for applications requiring versatile suspension tuning. Constructed with a robust 46mm body, the Bilstein 8125 series accommodates a wide range of terrain and driving conditions, ensuring a smooth and controlled ride regardless of the circumstances.
This coilover shock absorber features an advanced reservoir, which helps to improve damping performance by maintaining consistent fluid temperatures and minimizing fade under extreme conditions. The design allows for increased oil capacity, resulting in enhanced shock absorption and improved overall vehicle stability. Whether navigating off-road obstacles or cruising on highways, the Bilstein 8125 ensures optimal tire contact with the ground, providing drivers with confidence and precision.
With adjustable ride height capabilities ranging from 23.5 to 39.5 inches, the Bilstein 8125 offers unparalleled customization to meet specific preferences as well as varied driving needs. This adaptability not only enhances performance but also allows vehicles to maintain a desirable aesthetic, making it a popular choice among both daily drivers and performance-oriented builds.
FITMENT:
The Bilstein 8125 Series Coilover Shock Absorber is compatible with a variety of vehicles designed to accommodate a 23.5–39.5 inch range. Specific fitment details should be verified to ensure optimal installation and performance based on your vehicle's specifications.
Key Features & Benefits
- High-performance 46mm body for enhanced strength and durability.
- Reservoir design for improved damping performance and heat management.
- Adjustable ride height ranging from 23.5 to 39.5 inches for custom suspension tuning.
- Designed to improve vehicle stability and enhance tire contact with the ground.
- Ideal for both on-road and off-road applications, delivering versatility and reliability.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | BILSTEIN |
| Part number | 33-225586 |
| SKU | 4370973 |
| UPC | 651860756196 |
| Dimensions and weight | |
| Dimensions (W × H × D) | 13.00 × 48.00 × 5.00 in |
| Material and finish | |
| Finish | Zinc Plated |
| Material | Steel, Billet Aluminum |
| Series and warranty | |
| Details | |
| Body design | Threaded Body Screw Top (Coilover) |
| Collapsed length (in) | 24 |
| Extended length (in) | 39.5 |
| Includes | Shock Absorber, Reservoir, Spring Seat |
| Item length | 23.5 in. (Collapsed) / 39.5 in. (Extended) |
| Lower mount type | Eye .5x1.5in |
| Mount type | Eye-to-Eye |
| Mounting style | Eye-to-Eye (0.5 in. x 1.5 in.) |
| Position | Front, Rear, Left, Right (Universal – Eye-to-Eye Mount) |
| Prop 65 warning | Warning applies |
| Rebound @026m/s | 2550 |
| Reservoir | Yes |
| Reservoir included | Yes |
| Segment | Motorsports |
| Shock absorber system | Single Pipe (Monotube) |
| Shock absorber type | Gas |
| Shock stroke | 16.000 in. |
| Spring seat included | Yes |
| Travel length | 16 in. |
| Type | Suspension Shock Absorber |
| Upper mount type | Eye 0.500 in. x 1.500 in. |
| Rebound @0.26m/s | 2550 |
Shipping and returns
Shipping. Free on every order, US only. Orders arrive in 2–4 days.
Returns. 60-day free returns, except in extreme cases.
Support. Our team is available 24/7 for fitment mismatches or any other reason.
Warranty. Full manufacturer guarantee.
Not sure about this part? Ask us.
Fitment, install, what else you need for the job. A parts person answers, usually within one business day.
We answer by email. No account needed.
Questions and answers
No public questions on this part yet. Ask the first one.
Reviews
Write a reviewNo reviews on this part yet.
-
BILSTEIN
Bilstein 5100 Series Rear Shock Absorber for Chevy Silverado GMC Sierra 46mm
$171.85$123.00 -
BILSTEIN
Bilstein 5100 Series 46mm Front Shock Absorbers For 2000-2006 Chevrolet Tahoe
$171.85$123.00 -
BILSTEIN

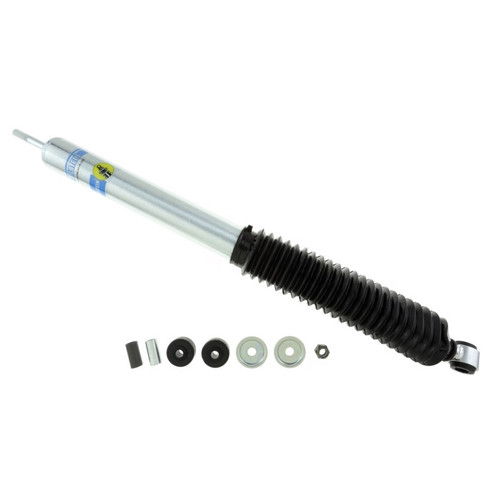

Bilstein B8 5125 Series Shock Absorber 33-230351 Monotube 46mm for Lifted Trucks
