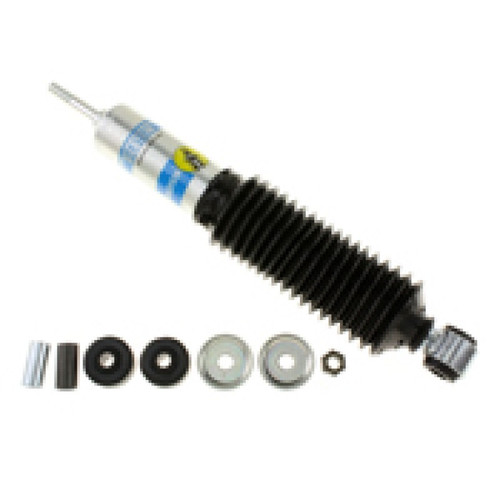

Bilstein B8 5125 Shock Absorber for Lifted Truck Custom Mount 9"/14" 33-230306
Part # 33-230306 SKU 354719
Write a Review
BILSTEIN
Bilstein B8 5125 Shock Absorber for Lifted Truck Custom Mount 9"/14" 33-230306
Highlights
- Adjustable damping
- No (Non-Adjustable)
- Boot included
- Black Bellows
- Collapsed length (in/mm)
- 9.41" / 239.1 mm
- Compression @052m/s
- 840
- Extended length (in/mm)
- 13.88" / 352.6 mm
- Internal design
- Monotube
- Lower mount type
- Eye 5/8 in (0.625")
- Material
- Steel
- Piston diameter
- 46 mm
- Position
- Rear
- Prop 65 warning
- Warning applies
- Rebound @052m/s
- 3695
- Reservoir
- No
- Segment
- Light Truck / Custom Suspension
- Shock absorber system
- Monotube
- Shock absorber type
- Gas
- Spring seat included
- No
- Stroke
- 4.47 in
- Type
- Suspension Shock Absorber
- Upper mount type
- Stem
- Rebound @0.52m/s
- 3695
- Interchange number
- 2020-2025 Jeep Gladiator All Trims | V6 Gas & Diesel | 0-1", Rear Lift
- Compression @0.52m/s
- 840
Description
Bilstein B8 5125 Shock Absorber for Lifted Truck Custom Mount 9"/14" 33-230306
The Bilstein B8 5125 Shock Absorber is engineered specifically for lifted trucks, enhancing both performance and control on varied terrains. Designed to meet the demands of off-road enthusiasts, this shock absorber boasts a robust construction that withstands extreme conditions. Its custom mount design ensures a perfect fit, allowing for better handling and stability while maintaining optimal ride comfort.
Featuring a monotube design, the B8 5125 shock absorber excels in heat dissipation, which is critical during high-performance usage. This technology not only prolongs the life of the shock but also enhances the damping characteristics, providing superior ride quality. Its 9"/14" adjustability range accommodates a variety of lifted truck configurations, ensuring compatibility and efficiency across different setups.
FITMENT: The Bilstein B8 5125 Shock Absorber is compatible with a wide variety of lifted truck applications. It is designed for vehicles that require increased suspension travel and are equipped with custom mounting provisions.
Key Features & Benefits
- Monotube design for superior heat dissipation and consistent performance.
- Custom mount configuration tailored for lifted trucks, ensuring a precise fit.
- 9"/14" adjustable range provides versatility for various lift heights.
- Enhanced damping characteristics for superior handling and stability.
- Robust construction designed to withstand demanding off-road conditions.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | BILSTEIN |
| Part number | 33-230306 |
| SKU | 354719 |
| UPC | 651860729381 |
| Dimensions and weight | |
| Piston diameter | 46 mm |
| Dimensions (W × H × D) | 3.00 × 22.00 × 3.00 in |
| Material and finish | |
| Finish | Zinc Plated |
| Material | Steel |
| Series and warranty | |
| Details | |
| Adjustable damping | No (Non-Adjustable) |
| Boot included | Black Bellows |
| Collapsed length (in/mm) | 9.41" / 239.1 mm |
| Compression @052m/s | 840 |
| Extended length (in/mm) | 13.88" / 352.6 mm |
| Includes | Shock Absorber |
| Internal design | Monotube |
| Lower mount type | Eye 5/8 in (0.625") |
| Position | Rear |
| Prop 65 warning | Warning applies |
| Rebound @052m/s | 3695 |
| Reservoir | No |
| Segment | Light Truck / Custom Suspension |
| Shock absorber system | Monotube |
| Shock absorber type | Gas |
| Spring seat included | No |
| Stroke | 4.47 in |
| Type | Suspension Shock Absorber |
| Upper mount type | Stem |
| Rebound @0.52m/s | 3695 |
| Interchange number | 2020-2025 Jeep Gladiator All Trims | V6 Gas & Diesel | 0-1", Rear Lift |
| Compression @0.52m/s | 840 |
Shipping and returns
Shipping. Free on every order, US only. Orders arrive in 2–4 days.
Returns. 30-day returns, except in extreme cases.
Support. Our team is available 24/7 for fitment mismatches or any other reason.
Warranty. Full manufacturer guarantee.
Not sure about this part? Ask us.
Fitment, install, what else you need for the job. A parts person answers, usually within one business day.
We answer by email. No account needed.
