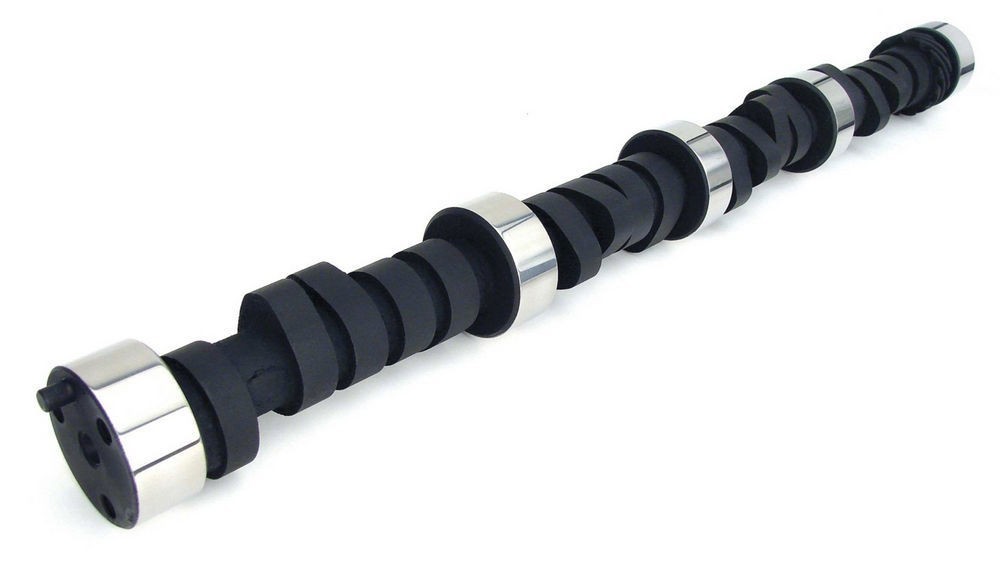

COMP Cams XE268H-10 Xtreme Energy Camshaft Hydraulic Flat For SBC Chevy 12-242-2
Part # 12-242-2 SKU COM12-242-2
Write a Review
COMP CAMS
COMP Cams XE268H-10 Xtreme Energy Camshaft Hydraulic Flat For SBC Chevy 12-242-2
Highlights
- Advertised duration (int/exh)
- 268° / 280°
- Camshaft type
- Hydraulic Flat Tappet
- CARB status
- Not CARB approved
- Color
- Natural
- Duration @ 0,050 in (int/exh)
- 224° / 230°
- Grind number
- XE268H-10
- Item weight
- 8.65 lbs (3.92 kg)
- Lifters included
- No
- Lobe separation angle
- 110°
- Material
- Cast Iron
- Mileage
- Less Than 10,000 miles
- Operating range
- 1600 – 5800 RPM
- Prop 65 warning
- Warning applies
- Timing chain set included
- No
- Type
- Engine Camshaft
- Valve lift (int/exh)
- 0.477 in / 0.480 in
- Valve springs included
- No
Description
COMP Cams XE268H-10 Xtreme Energy Camshaft Hydraulic Flat For SBC Chevy 12-242-2
The COMP Cams XE268H-10 Xtreme Energy Camshaft is engineered specifically for Small Block Chevy (SBC) applications, providing enthusiasts with a high-performance solution for maximizing engine efficiency and power output. This hydraulic flat camshaft features a distinctive Xtreme Energy design that enhances airflow, ensuring optimal combustion and torque across a broad RPM range. Its advanced profile is meticulously crafted to provide improved throttle response and overall engine performance, making it an ideal upgrade for both street and moderate race applications.
Featuring an aggressive lobe design, the XE268H-10 camshaft stimulates increased valve lift and duration, promoting a more potent engine response. The design fosters smoother valve operation, which is crucial for maintaining reliability in high-stress situations. Engineered for compatibility with hydraulic lifters, this camshaft delivers the necessary performance boost while offering a user-friendly installation process for those looking to enhance their vehicle without extensive modifications.
FITMENT: This camshaft is designed specifically for use with Small Block Chevy engines. It fits a wide range of SBC configurations, making it a versatile choice for various aftermarket builds and restorations.
Key Features & Benefits
- Hydraulic flat camshaft design for ease of installation and reliability.
- Enhanced performance characteristics that lead to improved horsepower and torque.
- Optimized lift and duration for increased airflow and combustion efficiency.
- Precision-engineered to ensure compatibility with standard hydraulic lifters.
- Perfect for street performance and moderate racing applications.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | COMP CAMS |
| Part number | 12-242-2 |
| SKU | COM12-242-2 |
| UPC | 036584023531 |
| Dimensions and weight | |
| Dimensions (W × H × D) | 3.00 × 25.00 × 3.00 in |
| Material and finish | |
| Color | Natural |
| Finish | Natural |
| Material | Cast Iron |
| Series and warranty | |
| Details | |
| Advertised duration (int/exh) | 268° / 280° |
| Camshaft type | Hydraulic Flat Tappet |
| CARB status | Not CARB approved |
| Duration @ 0,050 in (int/exh) | 224° / 230° |
| Grind number | XE268H-10 |
| Includes | Camshaft |
| Item weight | 8.65 lbs (3.92 kg) |
| Lifters included | No |
| Lobe separation angle | 110° |
| Mileage | Less Than 10,000 miles |
| Operating range | 1600 – 5800 RPM |
| Prop 65 warning | Warning applies |
| Timing chain set included | No |
| Type | Engine Camshaft |
| Valve lift (int/exh) | 0.477 in / 0.480 in |
| Valve springs included | No |
Shipping and returns
Shipping. Free on every order, US only. Orders arrive in 2–4 days.
Returns. 30-day returns, except in extreme cases.
Support. Our team is available 24/7 for fitment mismatches or any other reason.
Warranty. Full manufacturer guarantee.
Not sure about this part? Ask us.
Fitment, install, what else you need for the job. A parts person answers, usually within one business day.
We answer by email. No account needed.
Questions and answers
No public questions on this part yet. Ask the first one.
Reviews
Write a reviewNo reviews on this part yet.
-
COMP CAMS

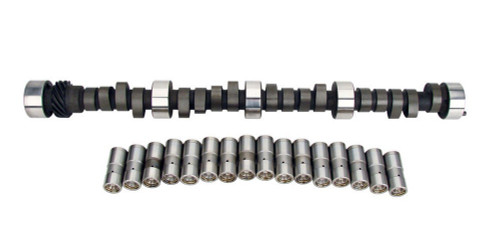

COMP Cams SBC XE268H Cam & Lifter Kit Hydraulic Flat Tappet CL12-242-2
