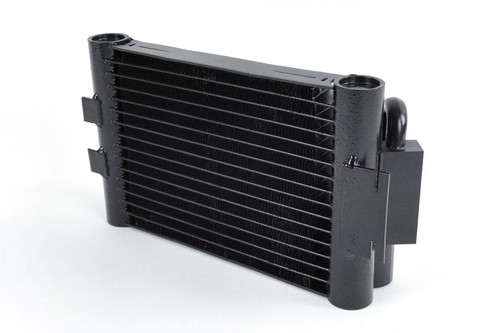

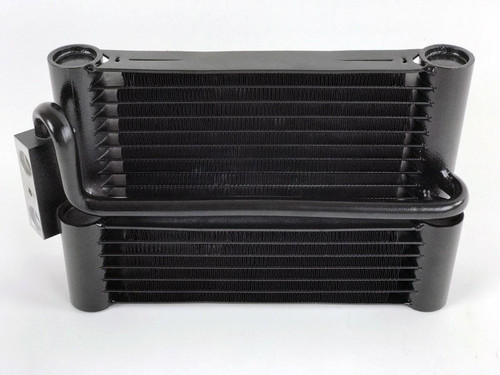

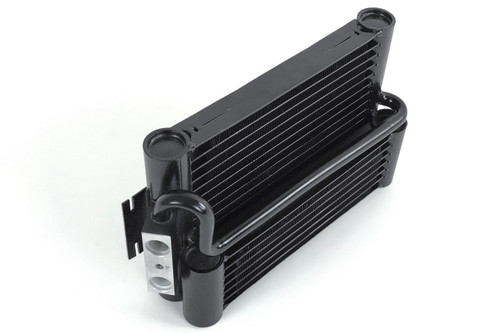

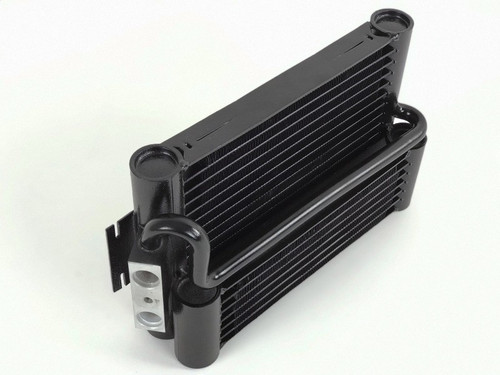

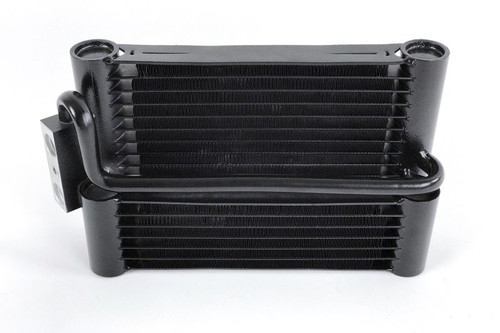

CSF Race-Spec Oil Cooler BMW N55 Engine 2013-2016 Models
Part # 8145 SKU 341890
Write a Review
CSF
CSF Race-Spec Oil Cooler BMW N55 Engine 2013-2016 Models
Highlights
- Type
- Engine Oil Cooler
- Flow design
- Single-Pass
- Installation type
- Direct Drop-In Replacement
- Cooling design
- Dual-Core In-Series
- Core material
- Aluminum
- Tube size
- 26mm
- Intended use
- Street / Track / Endurance Racing
- Core color
- Black
- Mounting style
- Bolt-On
- Performance increase
- Approx. 40% More Heat Rejection
- Material
- Aluminum
- Interchange number
- 2012-2016 BMW N55 335i 435i M235i CSF Race-Spec Dual-Core Oil Coo, ler Upgrade L6 2979cc Applications
- Core technology
- Multi-Channel Micro-Tube
- Application
- BMW N55 Engines
Description
Key facts
- Part number: 8145
- "Drop-In Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
- Requires Additional Half Quart for Proper Fill-up During Installation (OEM Cooler: 7 Qts./ CSF's Upgrade Race-Spec N55 Oil Cooler: 7.5 Quarts)
- Secondary In-Series Backside Cooler has an Additional 5 Rows of Cooling for a 40% Increase in Heat Rejection
- Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
- World's 1st and Only True "Plug-And-Play" Upgraded Engine Oil Cooler for the BMW N55 Engine
- Converted to a Single-Pass Design with High Pressure Return Line for Optimal Flow
CSF Race-Spec Oil Cooler BMW N55 Engine 2013-2016 Models
The CSF Race-Spec Oil Cooler is an essential performance upgrade designed specifically for BMW N55 engines produced between 2013 and 2016. This high-performance oil cooler enhances your vehicle's cooling efficiency, ensuring optimal operating temperatures even under high-performance conditions. With the increasing demands of spirited driving, track days, or competitive racing, maintaining appropriate oil temperatures is critical to engine health and performance longevity.
Constructed with high-quality materials, the CSF oil cooler features superior thermal transfer properties that not only reduce oil temperatures but also improve overall engine responsiveness. The increased cooling capacity minimizes the risk of engine wear and enhances the reliability of performance-oriented applications. The design incorporates robust mounting solutions and precision-engineered fittings, ensuring a perfect fit and easy installation, catering specifically to the designated BMW models.
FITMENT:
This oil cooler is compatible with BMW N55 engines from 2013 to 2016, covering various models equipped with this engine type. It is engineered for a direct replacement fit, ensuring seamless integration without modifications.
Key Features & Benefits
- Optimized oil cooling capacity for high-performance applications.
- Enhanced thermal efficiency reduces oil temperatures, promoting longer engine life.
- Precision engineering ensures a perfect fit with no modification required.
- Constructed from high-quality materials for durability and performance reliability.
- Lightweight design minimizes additional weight to the vehicle while maximizing cooling efficiency.
Fits
2012-2015 BMW 335i, 2012-2015 BMW 335i xDrive, 2014-2016 BMW 335i GT xDrive, 2014-2016 BMW 435i and 6 more
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | CSF |
| Part number | 8145 |
| SKU | 341890 |
| UPC | 710353081457 |
| Dimensions and weight | |
| Dimensions (W × H × D) | 11.00 × 15.00 × 5.00 in |
| Material and finish | |
| Finish | Painted |
| Material | Aluminum |
| Series and warranty | |
| Details | |
| Type | Engine Oil Cooler |
| Flow design | Single-Pass |
| Installation type | Direct Drop-In Replacement |
| Cooling design | Dual-Core In-Series |
| Core material | Aluminum |
| Tube size | 26mm |
| Intended use | Street / Track / Endurance Racing |
| Core color | Black |
| Mounting style | Bolt-On |
| Performance increase | Approx. 40% More Heat Rejection |
| Interchange number | 2012-2016 BMW N55 335i 435i M235i CSF Race-Spec Dual-Core Oil Coo, ler Upgrade L6 2979cc Applications |
| Core technology | Multi-Channel Micro-Tube |
| Application | BMW N55 Engines |
Shipping and returns
Shipping. Free on every order, US only. Orders arrive in 2–4 days.
Returns. 60-day free returns, except in extreme cases.
Support. Our team is available 24/7 for fitment mismatches or any other reason.
Warranty. Full manufacturer guarantee.
Not sure about this part? Ask us.
Fitment, install, what else you need for the job. A parts person answers, usually within one business day.
We answer by email. No account needed.
Questions and answers
No public questions on this part yet. Ask the first one.
Reviews
Write a reviewNo reviews on this part yet.
-
CSF
CSF Intercooler N55 8115B BMW 320i M2 F30 F32 F22 2013-2017 Upgrade
$499.00 -
CSF
CSF High-Performance Engine Oil Cooler for BMW G8X M2 M3 M4 2021-2023 8266
$599.00 -
CSF
CSF Engine Oil Cooler w Rock Guard BMW M3 M4 M2 Comp F8X 8220 Aluminum
$549.00 -
CSF

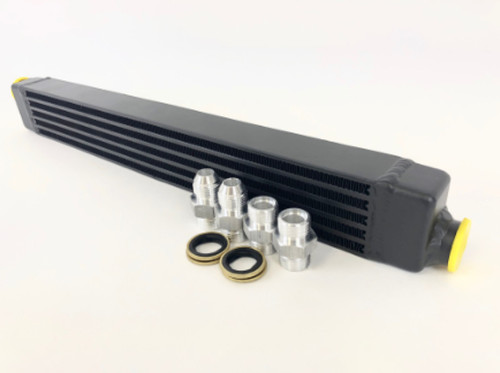

CSF Performance Oil Cooler -10AN Fittings for BMW E30 3 Series 1982-1994 8092
