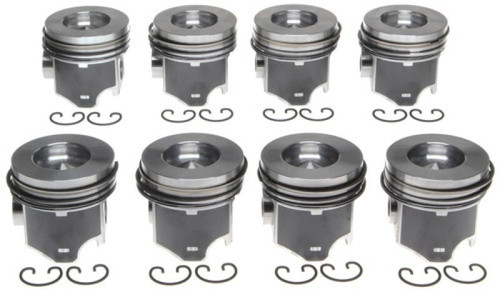

MAHLE 224-3503 Piston & Ring Set, Standard Bore – 2004–2007 Ford 6.0L Power Stroke (Set of 8, built 9/22/03+)
Part # 224-3503 SKU 53602
Write a Review
Mahle OE
MAHLE 224-3503 Piston & Ring Set, Standard Bore – 2004–2007 Ford 6.0L Power Stroke (Set of 8, built 9/22/03+)
Highlights
- Bore
- Standard (3.74 in / 95 mm)
- Compression ratio
- 18.0:1 (OE spec)
- Material
- Cast aluminum alloy, expansion-controlled design
- Coating
- Phosphate/graphite skirt
- Oversizes
- Separate part numbers (+0.50, +0.75, +1.00 mm)
- CARB status
- Not CARB approved
- OE equivalent
- 144060-STD
- Type
- Piston Set
Description
What it is
The OE-replacement piston set for a 6.0L Power Stroke rebuild, from the company that supplies pistons to Ford. Each piston comes with its rings fitted to the right bore size, so a shop can hone to standard and assemble. This is the stock-compression piston for a factory-spec rebuild; it is not a de-lipped or lower-compression race piston.
Fits
6.0L Power Stroke engines built from 22 September 2003 onward (check the build date on the door tag): 2004–2007 Super Duty pickups and chassis cabs, 2004–2010 E-series vans and the 2004–2005 Excursion. Early-build 2003 engines use a different piston. Standard bore; oversizes are separate.
What's in the box
Eight pistons with ring sets.
Installation
Machine-shop job: bore/hone to spec, check ring end gaps, assemble with the correct orientation marks, torque rod bolts to Ford spec. Pair with new bearings (see Clevite sets) and head gaskets/ARP studs if the heads are coming off, which on a 6.0 they usually are.
Why MAHLE
MAHLE makes the original pistons for this engine. On a 6.0L, where head-gasket and EGR failures already give owners enough to worry about, an OE-specification piston removes one variable from the rebuild.
Fits
Ford 6.0L Power Stroke V8 diesel built 9/22/2003 and later: 2004–2007 F-250/F-350/F-450/F-550 Super Duty, 2004–2010 E-series, 2004–2005 Excursion. Standard bore only.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | Mahle OE |
| Part number | 224-3503 |
| SKU | 53602 |
| UPC | 027067713858 |
| Dimensions and weight | |
| Dimensions (W × H × D) | 10.00 × 18.00 × 5.00 in |
| Material and finish | |
| Material | Cast aluminum alloy, expansion-controlled design |
| Coating | Phosphate/graphite skirt |
| Series and warranty | |
| Details | |
| Quantity | 8 pistons with rings and pins |
| Bore | Standard (3.74 in / 95 mm) |
| Compression ratio | 18.0:1 (OE spec) |
| Oversizes | Separate part numbers (+0.50, +0.75, +1.00 mm) |
| Made in | MAHLE OE supplier |
| CARB status | Not CARB approved |
| Includes | 8 Pistons |
| OE equivalent | 144060-STD |
| Type | Piston Set |
Shipping and returns
Shipping. Free on every order, US only. Orders arrive in 2–4 days.
Returns. 30-day returns, except in extreme cases.
Support. Our team is available 24/7 for fitment mismatches or any other reason.
Warranty. Full manufacturer guarantee.
