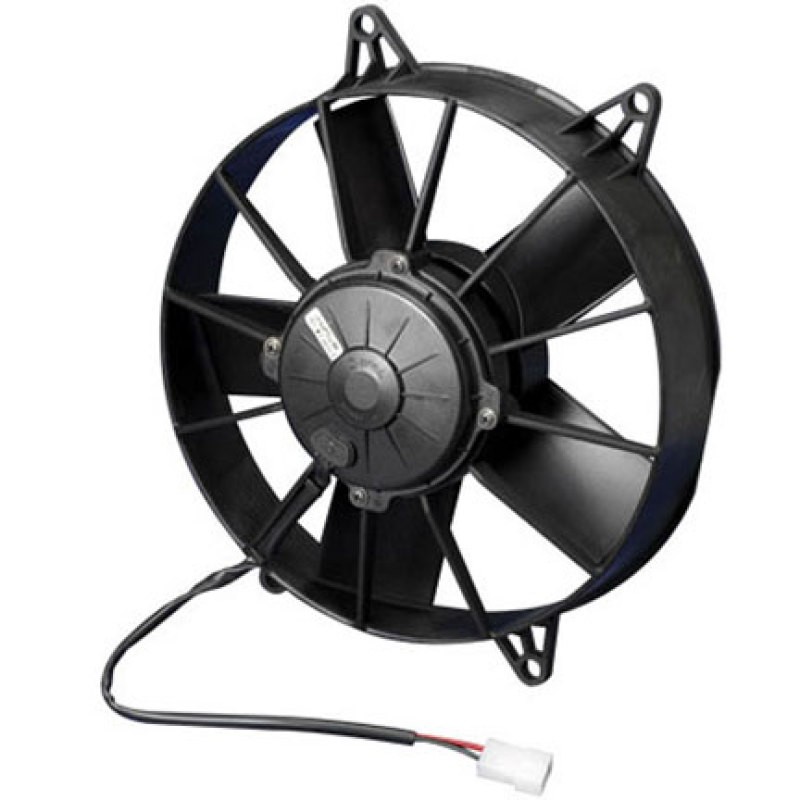

SPAL 30102057 10" High-Performance Puller Fan, 1,103 CFM, Paddle Blade – VA15-AP70/LL-39A, 12V

What it is

SPAL's 10-inch straight-blade puller, one of the most common auxiliary fans in the hobby: compact enough for an intercooler or a narrow radiator, strong enough at 1,100 CFM to handle cooling on a small-displacement engine or to supplement a mechanical fan. The paddle blade is louder than SPAL's curved blade but moves more air at the same size.

Fits

Universal. Needs roughly 11 × 12 inches of face area and 3.8 inches of clearance between core and engine. Puller configuration: it mounts on the engine side of the core. Use a relay and a thermostatic switch or controller; SPAL recommends a 20 A circuit for this fan.

What's in the box

Fan assembly with motor and shroud ring, pigtail leads. Mounting brackets, relay and wiring are separate.

Installation

Mount with SPAL fan brackets or a custom shroud (never through-core zip ties on an aluminum radiator), wire through a relay with a thermostatic switch, fuse at 20 A. One to two hours.

Why SPAL

SPAL (Italy) makes fans for OE manufacturers and its CFM figures are measured, not marketing numbers; the sealed motors are rated for engine-bay heat and water.

Universal 12V electric puller fan for radiators, intercoolers, oil coolers and condensers with about 10.6 in × 11.9 in of mounting area and 3.8 in of depth. Mount with SPAL brackets or a shroud.

Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
