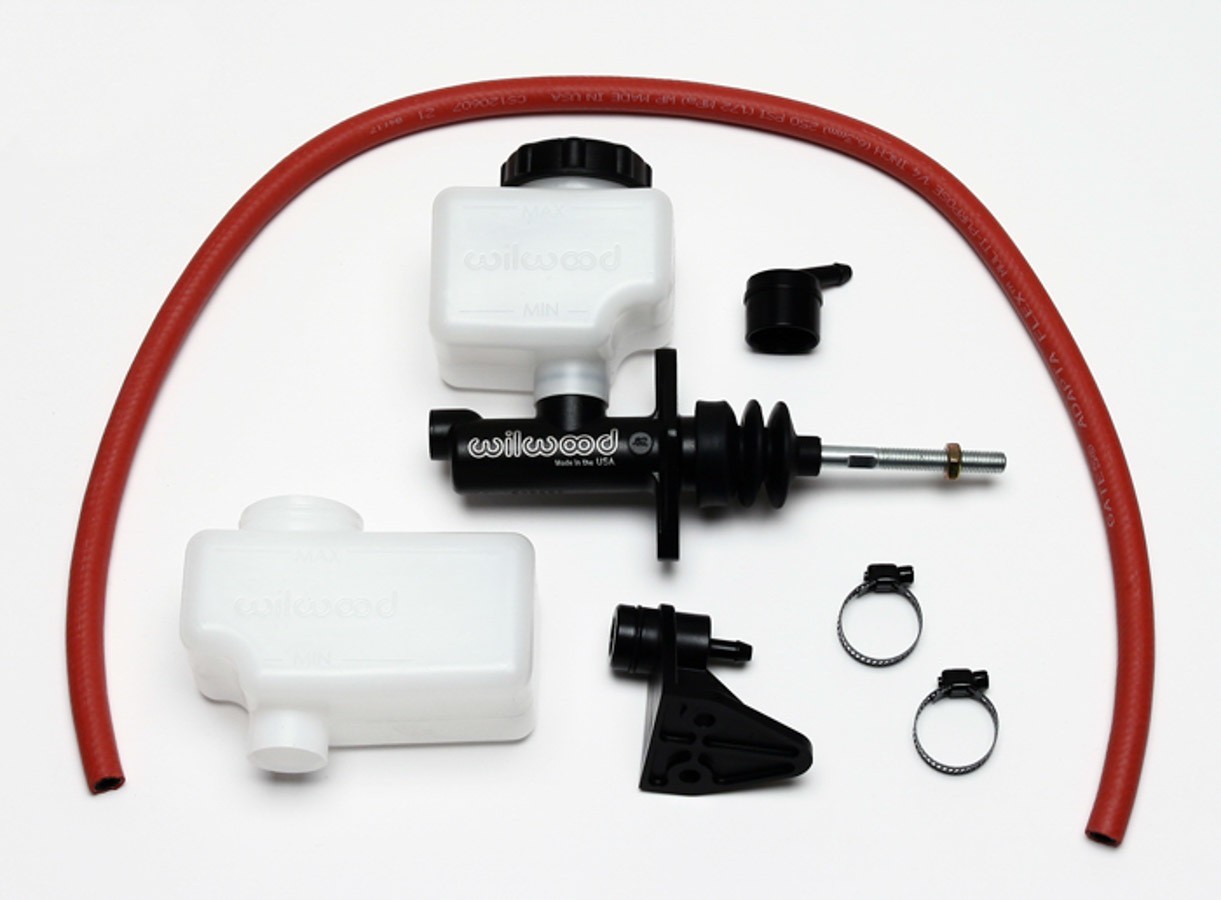

Wilwood 260-10372 Compact Master Cylinder Kit 3/4in Bore Aluminum Black

The Wilwood 260-10372 Compact Master Cylinder Kit is designed for applications where installation space is limited but full-size master cylinder output capacity is required. This version features a 3/4-inch bore, compact aluminum body and an included reservoir.

The ultra-short 3.37-inch body provides additional clearance between the mounting flange and fluid outlet, while the 1.12-inch piston stroke meets or exceeds the stroke capacity of many full-size master cylinders. A top-mounted 1/8-inch NPT fluid outlet helps reduce the possibility of trapped air in the hydraulic system.

Vehicle Fitment

Application: Designed for custom and application-dependent brake systems requiring a compact 3/4-inch bore master cylinder.

Fitment Note: No specific year, make or model fitment is specified. Verify bore size, mounting dimensions, hydraulic requirements, reservoir configuration and brake-system compatibility before ordering.

Key Features & Benefits

• Compact master cylinder kit
• 3/4-inch bore
• 3.37-inch compact body
• 1.12-inch piston stroke
• Provides 2.16 inches of additional clearance between mounting flange and fluid outlet
• 1/8-inch NPT fluid outlet located at the top radius of the cylinder bore
• Standard reservoir included
• 11/16-20 internal threads support compatible custom reservoir arrangements
• Aluminum body construction
• Black E-Coated finish for corrosion resistance

Technical Specifications

Installation & Compatibility

Confirm the required 3/4-inch bore size, mounting arrangement, hydraulic requirements and reservoir configuration before installation. The compact design is intended for applications where available installation space is limited.

Follow Wilwood installation instructions and verify compatibility with the complete brake system before use.

California Restriction

No California sales or use restriction is specified in the supplied product information.

Important Notes

• No specific year, make or model fitment is specified.
• Standard reservoir is included with the kit.
• Verify bore size and hydraulic compatibility before ordering.
