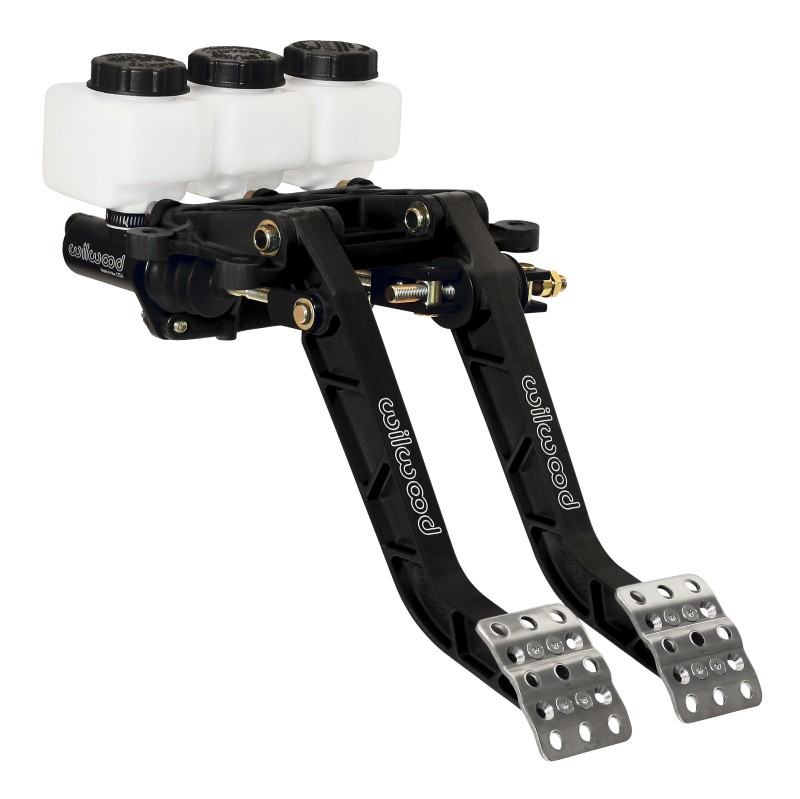

Wilwood 340-11295 Brake & Clutch Pedal Assembly 6.25:1 Forward Swing Mount

The Wilwood 340-11295 Adjustable Forward Mount Brake & Clutch Pedal Assembly is designed for custom and application-dependent brake and clutch installations. Its swinging-mount configuration positions the master cylinders forward of the pedal assembly, outside the firewall.

The assembly combines a lightweight aluminum frame with high-strength reinforced I-beam-style forged pedal arms and a 6.25:1 pedal ratio. Non-skid waffled pedal pads can be adjusted laterally to suit driver preference or provide additional clearance within the pedal area.

Application

Application: Designed for custom brake and clutch systems where the mounting arrangement, pedal position and master cylinder configuration are selected for the specific vehicle or build.

Fitment Note: No direct year, make, model or engine fitment is specified. Verify mounting dimensions, pedal positioning and master cylinder requirements before ordering.

Key Features & Benefits

• Combined brake and clutch pedal assembly
• Forward-mount / swinging-mount configuration
• Master cylinders positioned forward of the pedal assembly
• Lightweight aluminum frame
• Reinforced I-beam-style forged pedal arms
• 6.25:1 pedal ratio
• Non-skid waffled pedal pads
• Laterally adjustable pedal pad positioning
• Adjustable brake balance bar
• Positive detent stop at each full balance-bar adjustment turn
• Pin-and-clevis pushrod attachment allows alignment through pedal travel
• Balance bar can be secured using the included jam nut
• Compatible with an optional remote balance-bar adjustment cable

Technical Specifications

Adjustment & Installation

The balance bar can be locked in the selected position using the included jam nut or connected to an optional remote balance-bar adjustment cable. Master cylinder style and bore size should be selected separately according to the requirements of the specific brake and clutch system.

California Restriction

No California sales or use restriction is specified in the supplied product information.

Important Notes

• Master cylinders are sold separately.
• Optional remote balance-bar adjustment cable is not included.
• No vehicle-specific year, make or model fitment is specified.
• Verify mounting arrangement, pedal position and master cylinder requirements before ordering.
