Wilwood 260-8420 Adjustable Proportioning Valve 1/8-27 NPT 100-1000 PSI
Wilwood 260-8420 Adjustable Proportioning Valve 1/8-27 NPT 100-1000 PSI
WILWOOD

Wilwood 260-8420 Adjustable Proportioning Valve 1/8-27 NPT 100-1000 PSI

Part # 260-8420 SKU WIL260-8420

(No reviews) Write a Review
$109.51
In stock, ships from a US warehouse
SKU: WIL260-8420
UPC: 889545067941
Width: 6.00 (in)
Height: 7.00 (in)
Depth: 1.00 (in)
Adding to cart… The item has been added
Shipping
Free, US only. Arrives in 2–4 days.
Returns
30-day returns. Wrong fit? Our team is here 24/7. Details
Help
Not sure it fits? +1 619-577-3602
  • Ships from US warehouses
  • Secure checkout: cards, PayPal, Google Pay
  • 5,464 positive feedback on eBay
  • Parts people on the phone, not a call centre

Highlights

Adjustment method
Lever
Color
Natural
Component type
Adjustable Proportioning Valve
Fittings included
Yes (Qty 2)
Inlet size
1/8 in NPT Female
Material
Aluminum
Maximum psi
1000 PSI
Minimum psi
100 PSI
Outlet size
1/8-27 in NPT
Port quantity
2
Style
Inline
Type
Brake Proportioning Valve

Description

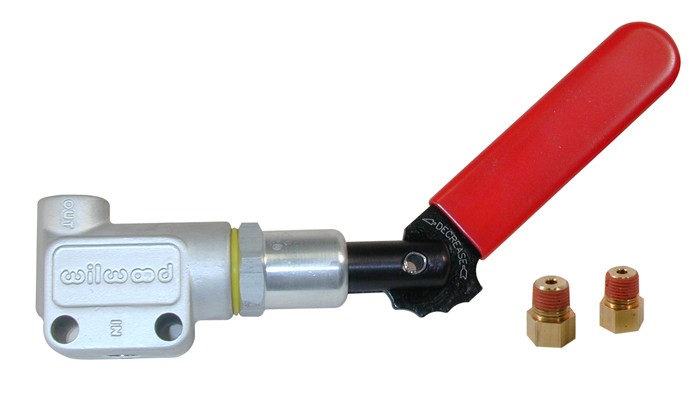

The Wilwood 260-8420 Adjustable Proportioning Valve is designed to provide precise brake-line pressure adjustment in compatible hydraulic brake systems. Its compact forged billet design combines strength with a six-position lever for quick, repeatable brake-bias adjustments.

Pressure adjustment ranges from 100 to 1000 PSI, with up to a 57% decrease in line pressure. The lever clicks into six preset positions, allowing consistent adjustment without relying on an unmarked setting.

Vehicle Fitment

Application: Designed for compatible custom, performance and motorsport hydraulic brake systems requiring an adjustable proportioning valve.

Fitment Note: No specific year, make or model fitment is specified. Verify brake-line size, thread type, hydraulic configuration and system compatibility before ordering.

Key Features & Benefits

  • Adjustable brake proportioning valve
  • 100-1000 PSI pressure adjustment range
  • Maximum line-pressure reduction of 57%
  • Six preset lever positions
  • Positive click adjustment between positions
  • Compact forged billet construction
  • 1/8-27 NPT inlet and outlet ports
  • Two included 1/8-27 NPT to 3/8-24 inverted flare female fittings
  • Fittings designed to suit many domestic 3/16-inch hard brake lines
  • Compact lever-style configuration

Technical Specifications

Brand Wilwood
Part Number / MPN 260-8420
Product Type Adjustable Proportioning Valve
Adjustment Type Lever
Preset Positions 6
Pressure Adjustment Range 100-1000 PSI
Maximum Line Pressure Reduction 57%
Inlet / Outlet Ports 1/8-27 NPT
Included Fittings 1/8-27 NPT to 3/8-24 Inverted Flare Female
Brake Line Compatibility Many Domestic 3/16 in Hard Brake Lines
Weight 6.1 oz
Side Mounting Holes Two 0.25 in Holes, 1.00 in Apart

Installation & Compatibility

Verify the vehicle's hydraulic brake-system layout, line size, fitting type and intended proportioning-valve location before installation. The included fittings are designed to fit many domestic 3/16-inch hard brake lines, but compatibility should be confirmed for the specific application.

Follow Wilwood installation instructions when setting brake bias and making hydraulic connections.

California Restriction

No California sales or use restriction is specified in the supplied product information.

Important Notes

  • No specific year, make or model fitment is specified.
  • Uses 1/8-27 NPT inlet and outlet ports.
  • Includes adapters to 3/8-24 inverted flare female fittings.
  • Verify complete hydraulic brake-system compatibility before ordering.

Specifications
Identification
BrandWILWOOD
Part number260-8420
SKUWIL260-8420
UPC889545067941
Dimensions and weight
Dimensions (W × H × D)6.00 × 7.00 × 1.00 in
Material and finish
ColorNatural
FinishClear Anodized
MaterialAluminum
Series and warranty
Details
Adjustment methodLever
Component typeAdjustable Proportioning Valve
Fittings includedYes (Qty 2)
Includesroportioning Valve, Fittings
Inlet size1/8 in NPT Female
Maximum psi1000 PSI
Minimum psi100 PSI
Outlet size1/8-27 in NPT
Port quantity2
StyleInline
TypeBrake Proportioning Valve

Shipping and returns

Shipping. Free on every order, US only. Orders arrive in 2–4 days.

Returns. 30-day returns, except in extreme cases.

Support. Our team is available 24/7 for fitment mismatches or any other reason.

Warranty. Full manufacturer guarantee.
