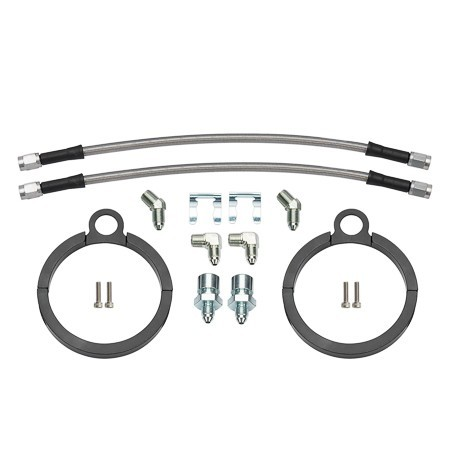

Wilwood 220-17289 Flexline Kit 12in Brake Hose 3/8-24 IF 1/8-27 NPT 90 Degree
Part # 220-17289 SKU WIL220-17289
Write a Review
WILWOOD
Wilwood 220-17289 Flexline Kit 12in Brake Hose 3/8-24 IF 1/8-27 NPT 90 Degree
Highlights
- Coated
- Yes
- Coating color
- Natural
- Coating material
- Braided
- Front/rear
- Front | Rear
- Hose a end 1 angle
- Straight
- Hose a end 1 size
- 3 AN
- Hose a end 1 style
- Female
- Hose a end 1 swivel
- Yes
- Hose a end 2 angle
- Straight
- Hose a end 2 size
- 3 AN
- Hose a end 2 style
- Female
- Hose a end 2 swivel
- Yes
- Hose a length
- 12 in
- Hose a size
- 3 AN
- Hose b end 1 angle
- Straight
- Hose b end 1 size
- 3 AN
- Hose b end 1 style
- Female
- Hose b end 1 swivel
- Yes
- Hose b end 2 angle
- Straight
- Hose b end 2 size
- 3 AN
- Hose b end 2 style
- Female
- Hose b end 2 swivel
- Yes
- Hose b length
- 12 in
- Hose b size
- 3 AN
- Hose end color
- Zinc
- Hose end finish
- Oxide
- Hose end material
- Steel
- Hose material
- Stainless
- Number of lines
- 2
- Position
- Front,Rear
- Type
- Clamp
Description
The Wilwood 220-17289 Flexline Kit is a 12-inch brake flexline designed for application-dependent brake system installations requiring the specified fitting and connection configuration. It provides a compact flexible-line solution for compatible Wilwood and custom brake system setups.
This flexline is supplied with -3, 3/8-24 inverted flare and 1/8-27 NPT connection specifications along with a 90-degree configuration. Verify the required hose length, fitting type, thread size and routing before ordering.
Vehicle Application
No direct year, make or model fitment is specified in the supplied product information. This is an application-dependent brake flexline kit intended for compatible systems using the listed connection specifications.
Fitment Note: Verify fitting type, thread size, hose length and brake-system configuration before purchase or installation.
Key Features & Benefits
- Wilwood application-dependent flexline kit
- 12-inch hose length
- -3 connection specification
- 3/8-24 inverted flare connection
- 1/8-27 NPT connection
- 90-degree configuration
- Designed for compatible brake system installations
Technical Specifications
| Brand | Wilwood |
| Part Number / MPN | 220-17289 |
| Product Type | Flexline Kit |
| Length | 12 in |
| Connection | -3 |
| Fitting Specification | 3/8-24 IF |
| NPT Specification | 1/8-27 NPT |
| Configuration | 90 Degree |
Installation
Confirm that the 12-inch hose length and listed fitting specifications match the intended brake system before installation. Route and secure the flexline according to the requirements of the specific brake configuration and current Wilwood installation guidance.
California Restriction
No California sales or use restriction is specified in the supplied product information.
Important Notes
- No direct year, make or model fitment is specified.
- Stainless-steel construction is not confirmed in the supplied product information.
- A clamp-on mounting tab is not confirmed in the supplied product information.
- Verify hose length, fittings, threads and routing requirements before ordering.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | WILWOOD |
| Part number | 220-17289 |
| SKU | WIL220-17289 |
| UPC | 889545110937 |
| Dimensions and weight | |
| Dimensions (W × H × D) | 2.00 × 12.00 × 2.00 in |
| Material and finish | |
| Series and warranty | |
| Series | Flexline |
| Details | |
| Coated | Yes |
| Coating color | Natural |
| Coating material | Braided |
| Front/rear | Front | Rear |
| Hose a end 1 angle | Straight |
| Hose a end 1 size | 3 AN |
| Hose a end 1 style | Female |
| Hose a end 1 swivel | Yes |
| Hose a end 2 angle | Straight |
| Hose a end 2 size | 3 AN |
| Hose a end 2 style | Female |
| Hose a end 2 swivel | Yes |
| Hose a length | 12 in |
| Hose a size | 3 AN |
| Hose b end 1 angle | Straight |
| Hose b end 1 size | 3 AN |
| Hose b end 1 style | Female |
| Hose b end 1 swivel | Yes |
| Hose b end 2 angle | Straight |
| Hose b end 2 size | 3 AN |
| Hose b end 2 style | Female |
| Hose b end 2 swivel | Yes |
| Hose b length | 12 in |
| Hose b size | 3 AN |
| Hose end color | Zinc |
| Hose end finish | Oxide |
| Hose end material | Steel |
| Hose material | Stainless |
| Number of lines | 2 |
| Position | Front,Rear |
| Type | Clamp |
