Wilwood 140-13476-D Forged Dynalite-M Front Disc Brake Kit Mustang 1965-1969

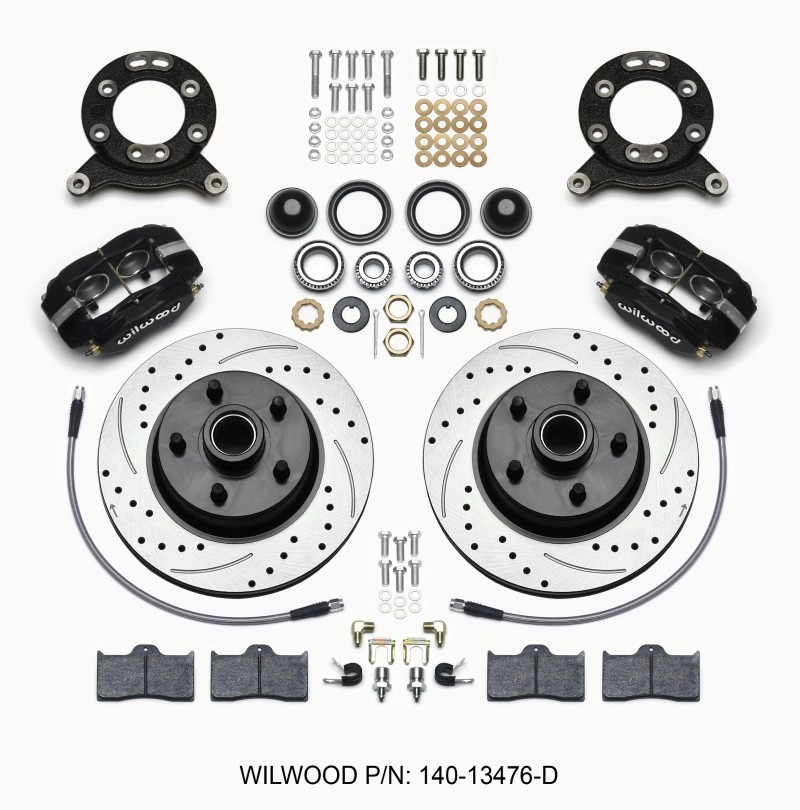

The Wilwood 140-13476-D Classic Series Forged Dynalite-M Front Disc Brake Kit is designed for 1965-1969 Ford Mustang applications using compatible OEM drum or disc spindles. The kit combines Wilwood FDL-M four-piston forged aluminum calipers with 11.30-inch drilled one-piece hub-and-rotor assemblies for a complete front disc brake upgrade.

The FDL-M caliper is based on Wilwood's Forged Dynalite design and is engineered to provide generous wheel clearance for its size. The one-piece cast iron rotor and integrated hub design helps simplify installation while providing dimensional stability and wear resistance.

Vehicle Fitment

1965-1969 Ford Mustang: Designed for compatible applications with OEM drum or disc spindles.

Wheel Fitment Note: Clears most 14-inch OEM disc-brake wheels. Does not fit OEM drum-brake wheels. Verify spindle, wheel and brake configuration before ordering.

Key Features & Benefits

• Classic Series front disc brake kit
• Forged Dynalite-M four-piston calipers
• Forged aluminum caliper construction
• Black anodized caliper finish
• 11.30-inch diameter rotors
• 0.94-inch rotor thickness
• SRP drilled rotor design
• One-piece cast iron rotor with integrated hub
• Compatible with applicable OEM drum or disc spindles
• Works with manual or power-boost master cylinder systems
• Designed to clear most 14-inch OEM disc-brake wheels
• Flex lines included
• Brackets, mounting hardware and installation instructions included

Technical Specifications

Installation & Compatibility

For intended 1965-1969 Mustang applications, Wilwood specifies installation on compatible OEM drum or disc spindles without vehicle modification. The kit can be used with either manual or power-boost master cylinder systems.

Supplied application data identifies 18-inch flex line part number 220-6471 for 1965-1967 applications and 220-9195 for 1968-1969 applications. Follow the current Wilwood installation instructions for the exact vehicle configuration.

California Restriction

No California sales or use restriction is specified in the supplied product information.

Important Notes

• Designed for compatible 1965-1969 Ford Mustang applications.
• Compatible with applicable OEM drum or disc spindles.
• Clears most 14-inch OEM disc-brake wheels.
• Does not fit OEM drum-brake wheels.
• Verify wheel clearance, spindle configuration and existing brake system before ordering.
