Wilwood 140-11828-DR Forged Dynalite Rear Disc Brake Kit Impala Corvette
Part # 140-11828-DR SKU 136870
Highlights
- Caliper type
- Forged Dynalite Four-Piston
- Position
- Rear
- Caliper material
- Forged Billet Aluminum
- Finish options
- Multiple Caliper Finishes Available
- Brake pad compound
- High-Friction Performance
- Rotor style
- Drilled
- Parking brake
- Internal Shoe Style
- Type
- Brake Disc Rotor
- Interchange number
- 1959-1964 Chevrolet Bel Air 3.8L, 3.9L, 4.3L L6; 4.6L, 5.3L, 5.4L, 5.7L, 6.7L, 7L V8, 1969-1970 Chevrolet, Impala 4.1L L6; 5L, 6.5L, 6.6L, 7L, 7.4L V8 -, Wilwood Forged Dynalite Rear Disc Brake Parking, Brake Kit.
- Application
- Street, Strip, Show, Restomod
Description

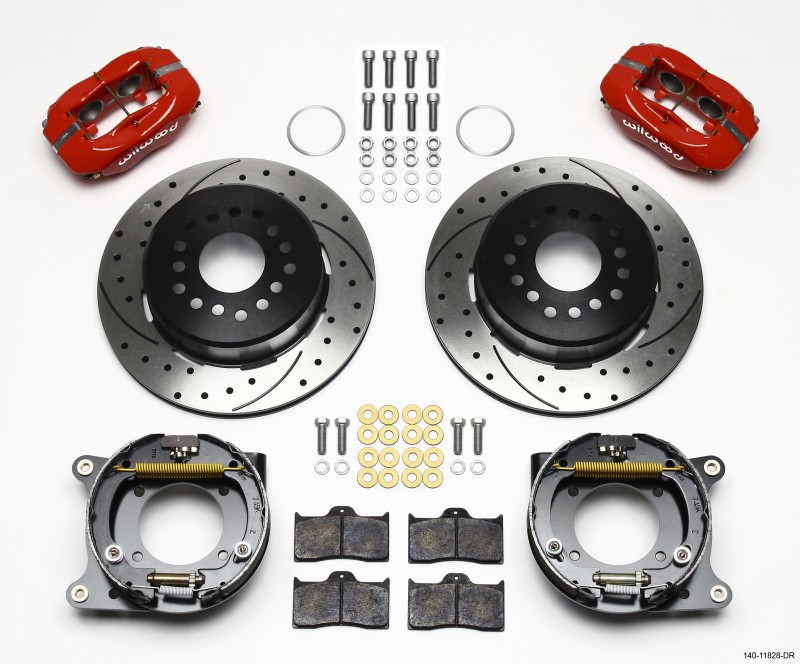

The Wilwood 140-11828-DR FDL Pro-Series Rear Disc Brake Kit is designed for select classic Chevrolet applications requiring an integrated parking brake solution. The kit combines Forged Dynalite four-piston calipers with 12.19-inch rear rotors and an internal shoe-style parking brake system.
This version features red powder-coated calipers and SRP drilled rotor styling. Wilwood's internal parking brake design keeps the parking brake mechanism neatly contained within the rear rotor assembly while providing dedicated static holding capability.
Vehicle Fitment
Chevrolet Impala: Select 1959-1964 applications.
Chevrolet Corvette: Select 1957-1962 applications. Verify exact rear axle, wheel clearance and brake configuration before ordering.
Key Features & Benefits
- FDL Pro-Series rear disc brake kit
- Forged Dynalite four-piston calipers
- Red powder-coated caliper finish
- 12.19-inch rear rotor configuration
- SRP drilled rotor design
- Integrated internal shoe-style parking brake system
- High-friction brake pads
- Designed for select classic Chevrolet applications
- Rear-mounted brake kit configuration
Technical Specifications
| Brand | Wilwood |
| Part Number / MPN | 140-11828-DR |
| Product Type | Rear Disc Brake Kit with Parking Brake |
| Series | FDL Pro-Series |
| Caliper | Forged Dynalite |
| Caliper Pistons | 4 |
| Caliper Finish | Red Powder Coat |
| Rotor Diameter | 12.19 in |
| Rotor Style | SRP Drilled |
| Parking Brake | Internal Shoe System |
| Position | Rear |
Installation & Wheel Clearance
Verify the rear axle configuration, mounting requirements and wheel clearance before installation. The supplied application information notes that this kit may fit some 15-inch wheels; check the wheel-clearance diagram in the current Wilwood installation instructions before purchase.
Universal parking brake cable and flexline solutions may require application-specific selection or modification. Confirm the required cable and hose configuration for the vehicle before installation.
California Restriction
No California sales or use restriction is specified in the supplied product information.
Important Notes
- This is a complete rear disc brake kit with an integrated parking brake system, not a standalone parking brake kit.
- Primary manufacturer application information specifies select 1959-1964 Chevrolet Impala and 1957-1962 Chevrolet Corvette applications.
- Some supplied catalog fitment entries conflict with those application ranges, so exact compatibility should be verified before ordering.
- Some 15-inch wheels may fit, but wheel clearance must be checked before purchase.
- Verify rear axle, wheel, parking brake cable and flexline requirements before installation.
Fits
1959-1964 Chevrolet Bel Air, 1969-1970 Chevrolet Impala
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | WILWOOD |
| Part number | 140-11828-DR |
| SKU | 136870 |
| UPC | 889545014204 |
| Dimensions and weight | |
| Dimensions (W × H × D) | 14.00 × 17.00 × 14.00 in |
| Material and finish | |
| Finish | Powder-Coated |
| Series and warranty | |
| Series | Forged Dynalite Parking Brake Kit |
| Details | |
| Caliper type | Forged Dynalite Four-Piston |
| Position | Rear |
| Caliper material | Forged Billet Aluminum |
| Finish options | Multiple Caliper Finishes Available |
| Brake pad compound | High-Friction Performance |
| Rotor style | Drilled |
| Parking brake | Internal Shoe Style |
| Type | Brake Disc Rotor |
| Interchange number | 1959-1964 Chevrolet Bel Air 3.8L, 3.9L, 4.3L L6; 4.6L, 5.3L, 5.4L, 5.7L, 6.7L, 7L V8, 1969-1970 Chevrolet, Impala 4.1L L6; 5L, 6.5L, 6.6L, 7L, 7.4L V8 -, Wilwood Forged Dynalite Rear Disc Brake Parking, Brake Kit. |
| Application | Street, Strip, Show, Restomod |
