Wilwood 120-10937-RD D52 2-Piston Front Caliper, Red – 1968–1996 GM Cars & Trucks (1.04" Rotor)

What it is

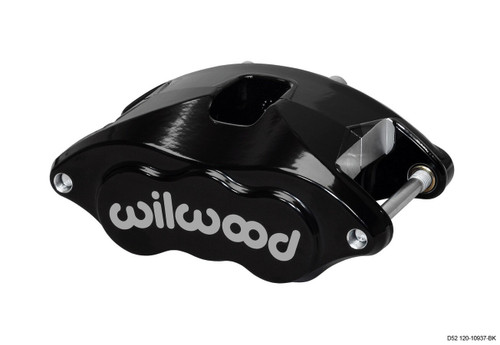

Wilwood's forged aluminum version of the GM D52 caliper, the single-piston floating caliper used on most GM cars and light trucks from 1968 to 1996. It bolts to the stock bracket and runs the stock rotor, but replaces a heavy iron caliper that rusts and pits with two stainless pistons in a billet body, cutting unsprung weight by several pounds per corner and ending the seized-piston problem.

Fits

Vehicles that came with the D52 front caliper, which covers many 1968–1996 GM passenger cars and trucks: Camaro, Firebird, Chevelle, Nova, Impala, Monte Carlo, El Camino, Cutlass, C10/C1500 and more. The rotor must be 1.00–1.04 inches thick. It is a replacement caliper, not a kit: if your car has a different caliper or a thicker rotor, this is not the part.

What's in the box

• One caliper with pistons and seals installed
• Pads, brackets, hoses and bolts are not included; the factory hardware is reused

Installation

Swap one for one at the stock bracket; reuse the factory banjo bolt or fit a new one, then bleed the system. Pair with new D52 pads and check that the hose clears the caliper body. Plan an hour per side plus bleeding.

Why Wilwood

Wilwood has built racing brakes in California since 1977, and the D52 is one of its longest-running street products: a race-style caliper body made to drop into a stock GM brake system without re-engineering it.

Direct replacement for the factory single-piston D52 front caliper on many 1968–1996 GM cars and trucks (Camaro, Chevelle, Nova, Impala, C10/C1500 and others) with 1.00–1.04 in thick rotors. Sold individually: order two per axle.
