Wilwood 140-11291-BK D52 Front Caliper Kit, Black, 2-Piston – 1968–1996 GM Cars & Trucks (Calipers, Pads, Lines)
Part # 140-11291-BK SKU WIL140-11291-BK
Write a Review
WILWOOD
Wilwood 140-11291-BK D52 Front Caliper Kit, Black, 2-Piston – 1968–1996 GM Cars & Trucks (Calipers, Pads, Lines)
Highlights
- Contents
- 2 calipers (L/R), BP-10 semi-metallic pads, braided stainless brake hose kit, slide pins
- Pistons
- 2 × 2.00 in per caliper, stainless
- Piston area
- 6.28 sq in
- Body
- Forged billet aluminum
- Rotor thickness
- 1.04 in
- Pad
- D52 shape, 10 sq in area, 3.9 cu in volume
- Inlet
- 7/16-20
- Mount
- Floating, stock bracket
Description
What it is
The complete front upgrade for the GM D52 brake: two forged aluminum two-piston calipers, Wilwood BP-10 street pads and stainless braided lines, bolting to the stock brackets over the stock rotors. Compared with buying the calipers alone, the kit gives you matched pads and lines and saves sourcing them.
Fits
1968–1996 GM passenger cars and light trucks that came with the D52 single-piston front caliper and 1.04-inch rotors (Wilwood sells a separate kit for 1.28-inch truck rotors). Camaro, Firebird, Chevelle, Nova, Impala, Monte Carlo, Cutlass, C10/C1500 and more. Stock master cylinder and booster are retained.
What's in the box

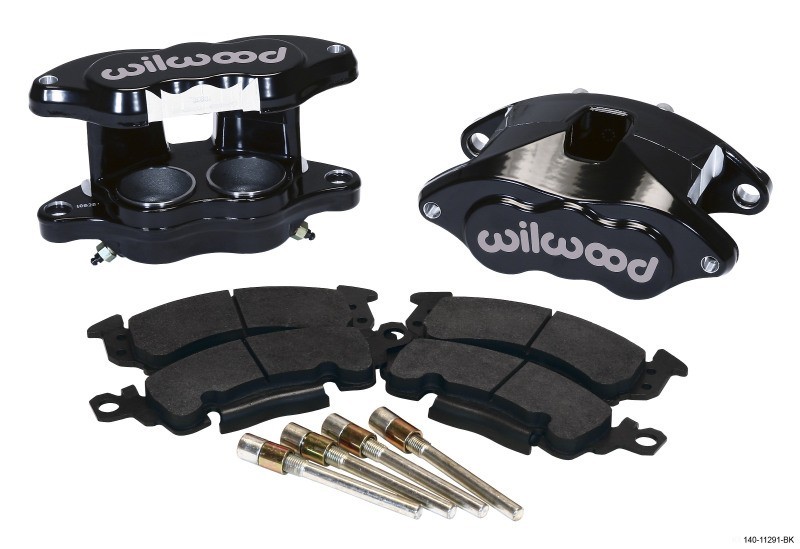

Two calipers with pistons and seals, pad set, braided hoses with fittings, slide pins/hardware, instructions.
Installation
Swap at the stock bracket, connect the new hoses, bleed, bed the pads. 2–3 hours for both sides. Check wheel clearance: the Wilwood body is slightly larger than the OE iron caliper.
Why Wilwood
The D52 kit is Wilwood's longest-running bolt-on street brake upgrade; forged aluminum and stainless pistons remove the rust and seized-piston problems that define old GM calipers.
Fits
Direct replacement for factory D52 single-piston front calipers on many 1968–1996 GM cars and trucks (Camaro, Firebird, Chevelle, Nova, Impala, Monte Carlo, C10/C1500 and more) with 1.04 in rotors. Uses OE D52 pad shape and 7/16-20 banjo.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Vehicle fitment
| Make | Model | Submodel | Years |
|---|
No vehicle matches that filter.
Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
Specifications
| Identification | |
|---|---|
| Brand | WILWOOD |
| Part number | 140-11291-BK |
| SKU | WIL140-11291-BK |
| UPC | 889545012545 |
| Dimensions and weight | |
| Inlet | 7/16-20 |
| Dimensions (W × H × D) | 12.00 × 13.00 × 6.00 in |
| Material and finish | |
| Finish | Black powder coat |
| Series and warranty | |
| Details | |
| Contents | 2 calipers (L/R), BP-10 semi-metallic pads, braided stainless brake hose kit, slide pins |
| Pistons | 2 × 2.00 in per caliper, stainless |
| Piston area | 6.28 sq in |
| Body | Forged billet aluminum |
| Rotor thickness | 1.04 in |
| Pad | D52 shape, 10 sq in area, 3.9 cu in volume |
| Mount | Floating, stock bracket |
Shipping and returns
Shipping. Free on every order, US only. Orders arrive in 2–4 days.
Returns. 60-day free returns, except in extreme cases.
Support. Our team is available 24/7 for fitment mismatches or any other reason.
Warranty. Full manufacturer guarantee.
