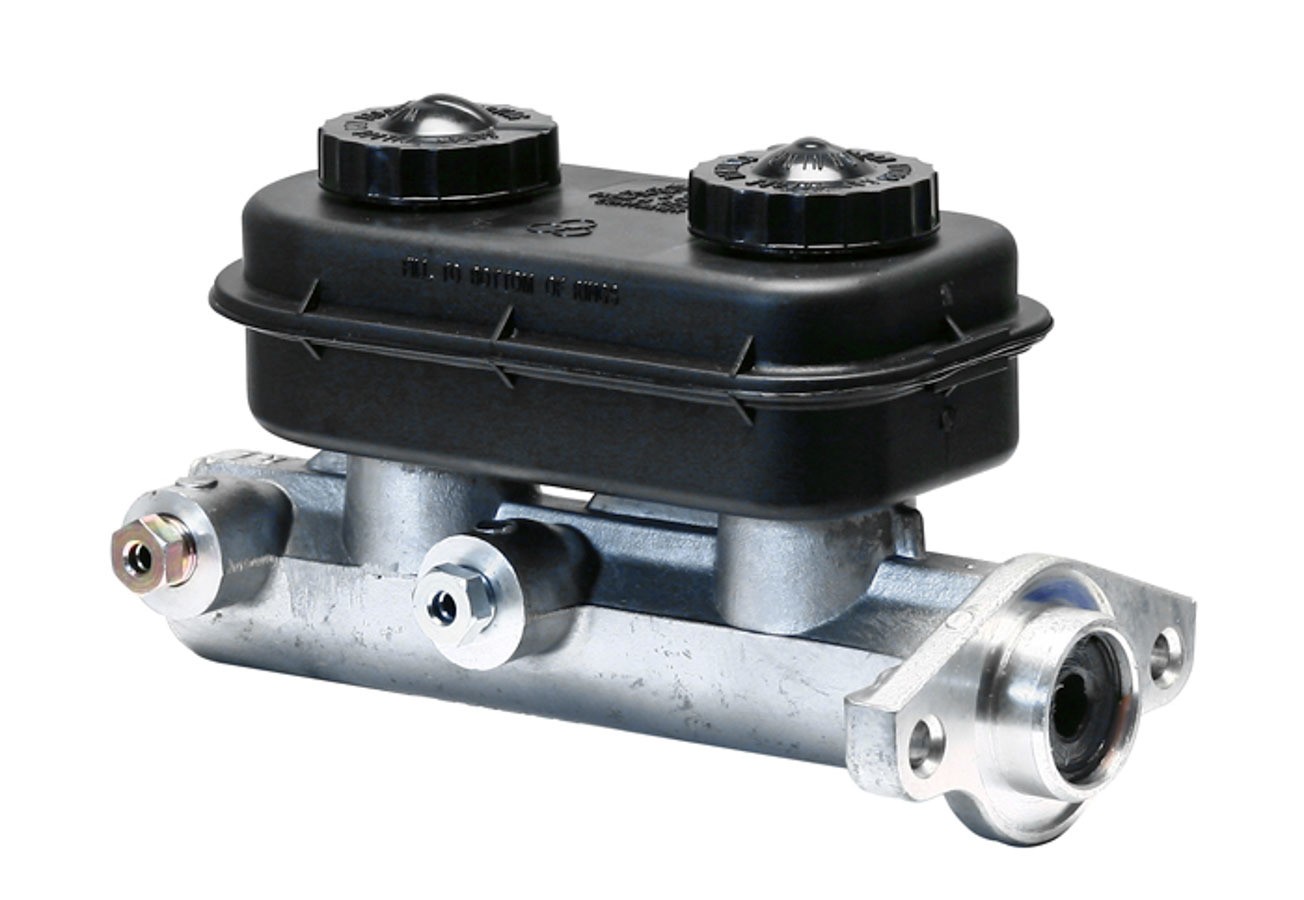

Wilwood 260-4893 Tandem Master Cylinder 1-1/16in Bore Aluminum Reservoir

The Wilwood 260-4893 Tandem Master Cylinder is a lightweight aluminum Chrysler-type master cylinder featuring a 1.0625-inch (1-1/16-inch) bore, large-capacity plastic reservoir and dual outlet bores. It uses standard O.E.M.-style internal components and is designed for compatible racing, street rod, off-road and custom brake-system applications.

Standard factory-style mounting bolt holes allow installation in compatible configurations, while an optional mounting adapter setup can be used with applicable racing pedal assemblies. The complete master cylinder assembly weighs approximately 2.5 pounds.

Application

Recommended applications include Drag Racing, Late Model Stock Cars, Street Rods, Off-Road vehicles and compatible custom or performance brake-system installations.

Application Note: No direct year, make or model fitment is specified in the supplied product information. Verify bore size, mounting pattern, outlet configuration, pedal setup and complete brake-system compatibility before ordering.

Key Features & Benefits

• Chrysler-type tandem master cylinder design
• 1.0625-inch (1-1/16-inch) bore
• Lightweight aluminum body
• Large-capacity plastic reservoir
• Dual outlet bores
• Standard O.E.M.-style internal components
• Standard factory-style mounting bolt holes
• Reservoir and fittings supplied with the complete assembly
• Can be adapted to compatible racing pedal assemblies with an optional mounting setup
• Approximately 2.5 lb total weight
• Used in drag racing, late model stock car, street rod and off-road applications

Technical Specifications

Installation & Compatibility

Standard factory-style mounting bolt holes can be adapted to compatible racing pedal assemblies using an optional mounting adapter bracket. Depending on the chosen adapter configuration, a push rod and dust boot may also be used.

Always verify the required master cylinder bore, mounting dimensions, outlet configuration, pedal assembly and complete brake-system requirements before installation.

California Restriction

No California sales or use restriction is specified in the supplied product information.

Important Notes

• No direct year, make or model fitment is specified.
• Compatibility depends on the complete brake-system and pedal configuration.
• Optional racing pedal mounting components are not identified as part of the standard master cylinder assembly.
• Verify all mounting and hydraulic requirements before ordering.
