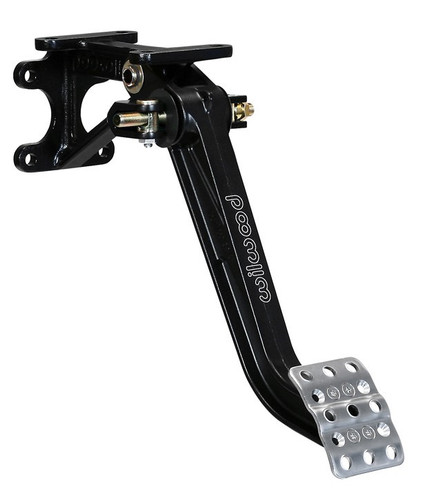

Wilwood 340-13832 Dual Master Cylinder Brake Pedal Assembly 7:1 Swing Mount

The Wilwood 340-13832 Swinging Mount Pedal Assembly is designed to operate two single-outlet brake master cylinders mounted in a forward position outside the firewall. The assembly features a 7:1 ratio forged pedal arm, lightweight aluminum frame and an adjustable balance bar for compatible custom and competition brake-system installations.

A reinforced I-Beam style pedal arm provides the primary pedal structure, while the non-skid waffled pedal pad can be adjusted laterally to suit driver preference or installation clearance. The balance bar incorporates a positive detent stop at each full turn to help maintain the selected adjustment position.

Application

Designed for custom brake-system installations using two compatible Wilwood vertical-mount flange single-outlet master cylinders. The master cylinders are mounted forward of the pedal assembly outside the firewall.

Application Note: This is an application-dependent pedal assembly rather than a direct year, make and model replacement. Verify firewall space, master cylinder configuration, pedal location and complete brake-system requirements before ordering.

Key Features & Benefits

• Dual master cylinder swinging-mount pedal assembly
• 7:1 pedal ratio
• Lightweight aluminum frame
• High-strength reinforced I-Beam style forged pedal arm
• Forward master cylinder mounting position outside the firewall
• Non-skid waffled pedal pad
• Laterally adjustable pedal pad for driver preference or clearance
• Adjustable balance bar system
• Positive detent stop at every full balance-bar turn
• Pin and clevis pushrod attachment system
• Balance bar can be locked with the included jam nut
• Compatible with an optional remote balance-bar adjustment cable

Technical Specifications

Installation & Compatibility

This assembly accepts compatible Wilwood vertical-mount flange single-outlet master cylinders, which are selected separately according to the required style and bore size.

The pin and clevis pushrod attachment system is designed to accommodate misalignment through pedal travel. The balance bar may be locked in position with the included jam nut or connected to an optional remote adjustment cable.

California Restriction

No California sales or use restriction is specified in the supplied product information.

Important Notes

• Master cylinders are ordered separately and are not confirmed as included with the pedal assembly.
• This assembly is designed to operate two compatible single-outlet master cylinders.
• Master cylinders mount in a forward position outside the firewall.
• Black or black-anodized finish is not specified in the supplied product information.
• No direct vehicle-specific fitment is provided.
• Verify pedal placement, firewall clearance and master cylinder requirements before ordering.
