Wilwood 140-12569-D D154 Rear Disc Brake Kit with Parking Brake Chevy C10

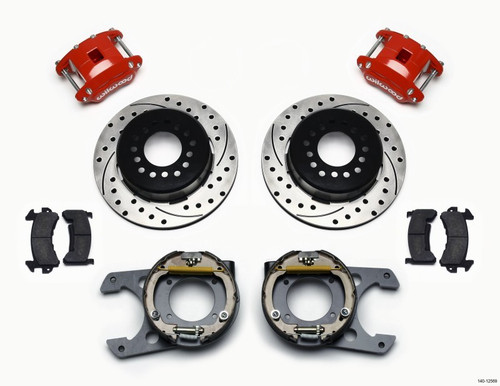

The Wilwood 140-12569-D D154 Pro-Series Rear Disc Brake Kit is designed for compatible 5-lug Chevrolet and GMC rear axle applications requiring a parking brake. This configuration uses forged D154 dual-piston calipers, 12.19-inch one-piece drum/rotors and high-friction brake pads, together with an internal shoe-style parking brake system.

This kit features SRP drilled and slotted rotors, black powder-coated D154 calipers and a 2.42-inch axle offset configuration. The internal parking brake system is neatly contained within the drum/rotor assembly for compatible custom performance street, strip and show applications.

Vehicle Fitment

Chevrolet: Select C10, C10 Suburban and related compatible 5-lug applications using the specified 2.42-inch rear axle offset. Applicable 1987 configurations may be listed under the R10 / R10 Suburban model designation.

GMC: Select C15/C1500 and related compatible 5-lug applications are also listed in the supplied fitment data, with applicable 1987 configurations listed under R1500 / R1500 Suburban. Verify exact axle, 5-lug configuration and 2.42-inch offset before ordering.

Key Features & Benefits

• D154 Pro-Series rear disc brake kit
• Forged D154 dual-piston calipers
• Black powder-coated caliper finish
• 12.19-inch one-piece drum/rotors
• SRP drilled and slotted rotor design
• High-friction brake pads
• Internal shoe-style parking brake system
• 5-lug configuration
• 2.42-inch axle offset
• Designed for compatible custom performance street, strip and show applications

Technical Specifications

Installation & Compatibility

Verify the rear axle configuration, 5-lug pattern and 2.42-inch offset before installation. Some 15-inch wheels may fit, but wheel clearance must be checked against the current Wilwood wheel-clearance diagram before purchase.

Parking brake cable requirements depend on the vehicle and installation. A universal parking brake cable setup may require modification to the cable or vehicle.

California Restriction

No California sales or use restriction is specified in the supplied product information.

Important Notes

• 5-lug applications only.
• Requires the compatible 2.42-inch rear axle offset configuration.
• Do not assume all C10/C15 vehicles use the required axle configuration.
• Some 15-inch wheels may fit; verify wheel clearance before ordering.
• Parking brake cable installation may require application-specific modification.
• Verify exact vehicle, axle and brake-system compatibility before ordering.

1975-1986 Chevrolet C10, 1975-1984 GMC Jimmy, 1975-1986 Chevrolet C10 Suburban, 1979-1986 GMC C1500 and 10 more

Fitment data from the manufacturer catalogue. Check your engine before ordering, or call us.
